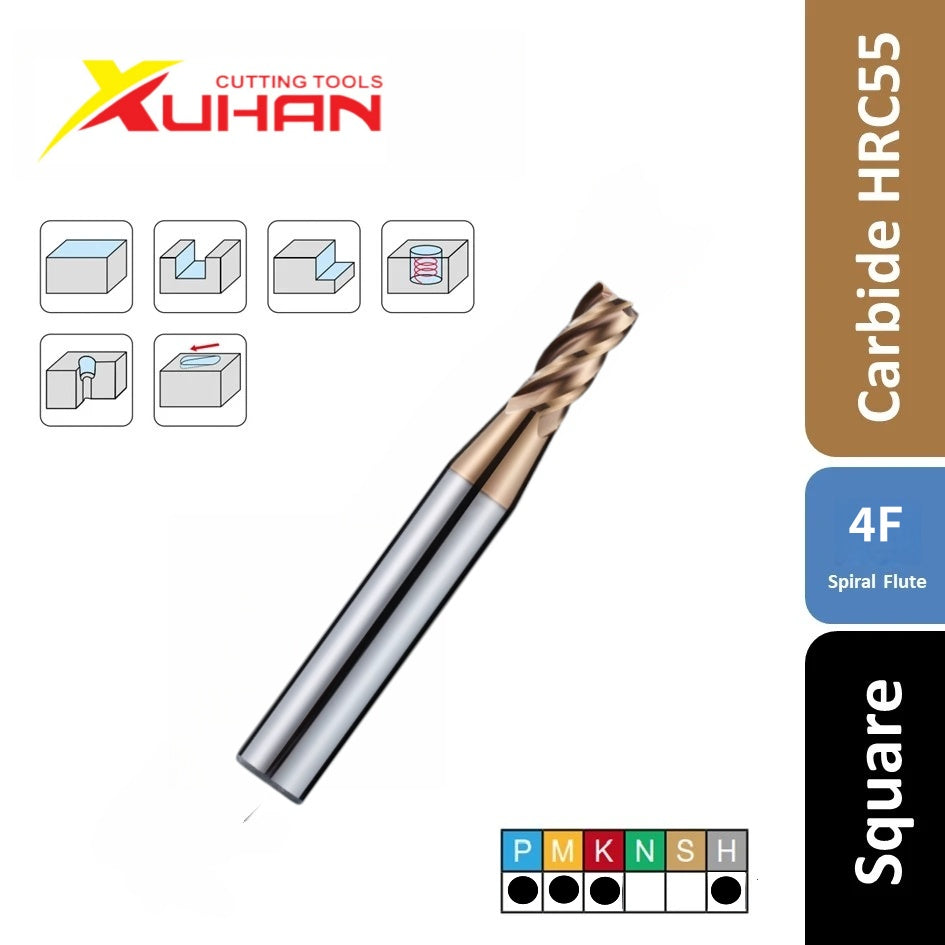

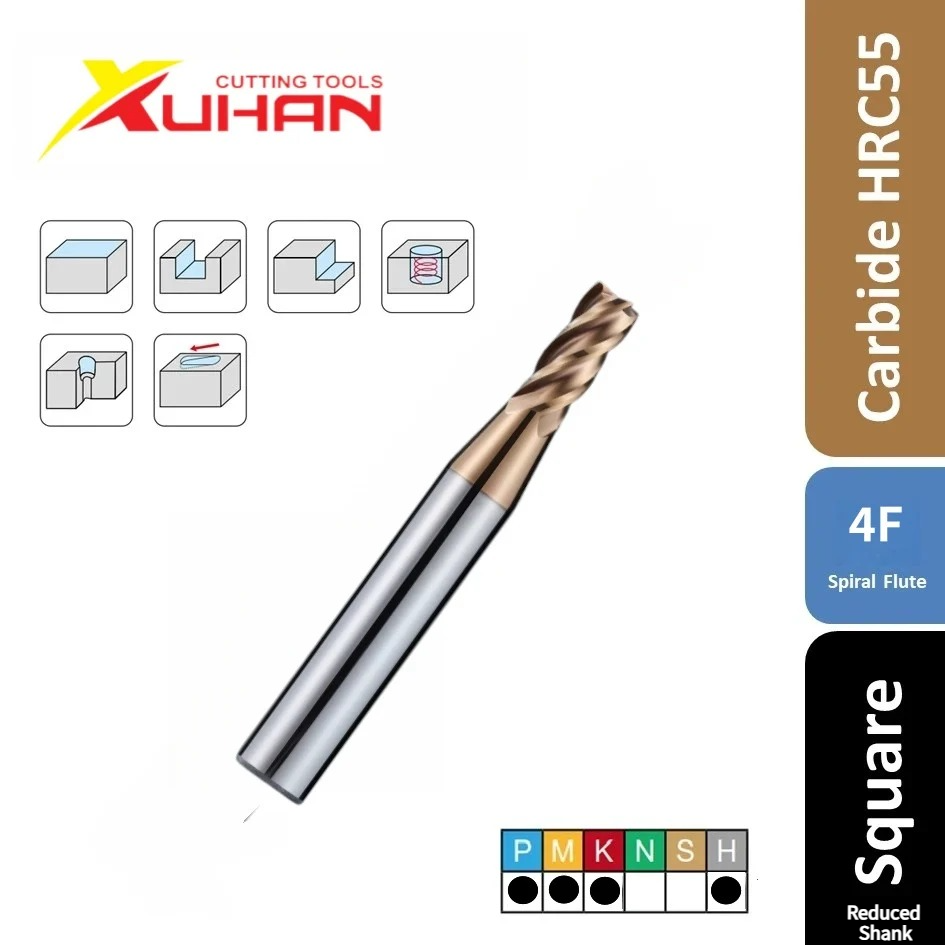

HRC55 4-Flute Square End Mill
Built for precision CNC milling and general metal machining, this HRC55 4-Flute Square End Mill delivers excellent rigidity, wear resistance, and cutting efficiency. Manufactured from premium 0.2μm ultra-fine tungsten carbide and finished with a nano composite coating, it is designed for stable machining performance and extended tool life across a wide range of materials.
Key Features
Premium 0.2μm Micro-Grain Tungsten Carbide
Made from high-quality ultra-fine grain carbide material using an integrated one-piece forming process. The solid carbide construction provides excellent toughness, anti-vibration performance, and resistance to breakage during high-speed machining.
HRC55 Machining Capability

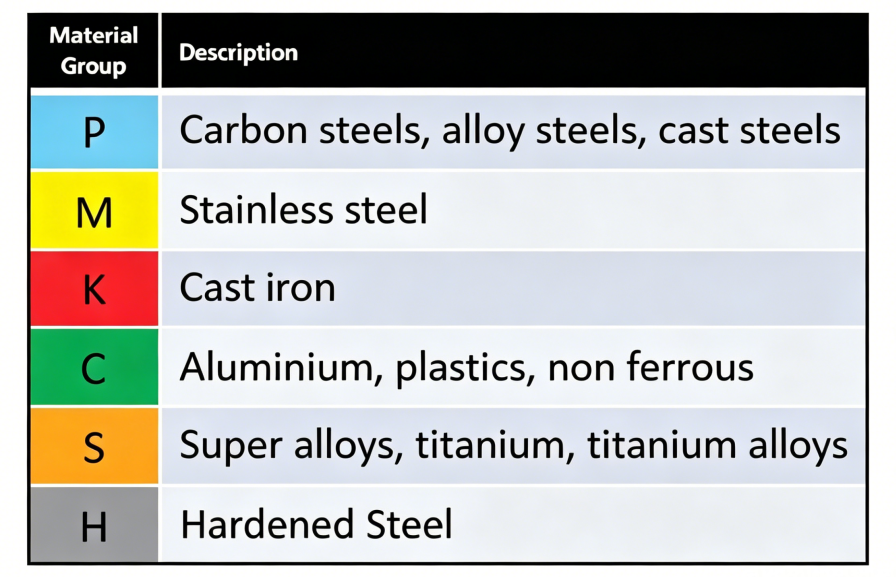

Suitable for machining materials up to HRC55 hardness, including:
- Carbon steel
- 45# steel
- Stainless steel
- Cast iron
- Mold steel
Delivers reliable cutting performance for both general-purpose and precision CNC applications.
4-Flute Square End Design
The precision 4-flute geometry improves cutting stability and machining efficiency while maintaining smooth cutting action. The square end design is ideal for slotting, side milling, profiling, and finishing operations.
Precision-Ground Cutting Edges
Fully ground flutes and sharp cutting edges help reduce burr formation and improve surface finish quality. The optimized helical flute design also enhances chip evacuation for more efficient machining.
Nano Composite Coating
The advanced nano composite coating reduces friction and improves wear resistance, heat resistance, and tool durability. This helps extend service life and maintain stable cutting performance during continuous machining.
Smooth Chip Evacuation
Precision spiral flutes allow fast and efficient chip removal, reducing chip buildup and improving machining stability during high-speed operations.
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Square End Mill |
| Flute Count | 4 Flutes |
| Material | Solid Tungsten Carbide |
| Carbide Grade | 0.2μm Micro-Grain Carbide |
| Coating | Nano Composite Coating |
| Hardness Rating | HRC55 |
| Shank Type | Straight Shank |
| Cutting Direction | Right-Hand Cut |
| Applications | CNC Milling, Slotting, Side Milling, Profiling |
Applications
Suitable for:
- CNC machining centers
- Mold manufacturing
- Precision metal milling
- Steel and stainless steel machining
- General-purpose milling operations
Designed for stable cutting performance, high machining efficiency, and long-lasting durability in industrial machining environments.
